New

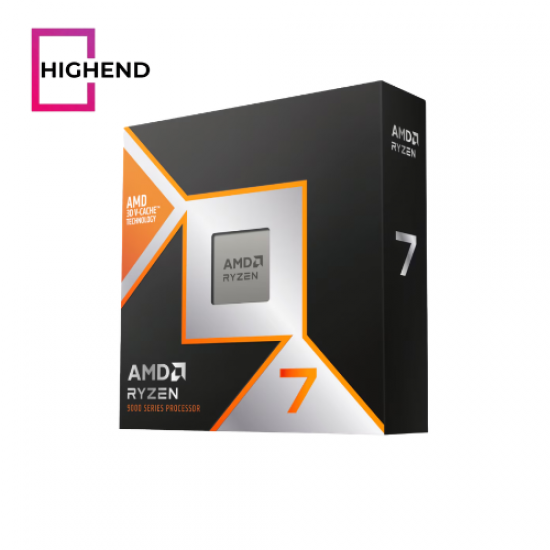

AMD Ryzen 7 9850X3D 16-Core AM5 Desktop Processor – Zen 5, 96MB 3D V-Cache, 5.7GHz Boost,120W TDP
- Stock: In Stock
- Brand: AMD
- Model: 100-100001973WOF
Products Sold: 0
Product Views: 8
25,750.00 EGP
Ex Tax: 25,750.00 EGP
Model Name
AMD Ryzen™ 7 9850X3D
AMD Ryzen™ 7 9850X3D
Family / Series
Ryzen 9000 Series (Granite Ridge)
Ryzen 9000 Series (Granite Ridge)
Form Factor
Desktop, Boxed Processor
Desktop, Boxed Processor
Market Segment
Enthusiast Desktop
Enthusiast Desktop
Processor Architecture
Zen 5
Zen 5
CPU Cores / Threads
16 cores / 32 threads
16 cores / 32 threads
Clock Speeds
- Base Clock: 4.7 GHz
- Max Boost Clock: Up to 5.6 GHz
Cache
- L1 Cache: 640 KB
- L2 Cache: 8 MB
- L3 Cache: 96 MB (includes 3D V-Cache)
TDP
120W
120W
Manufacturing Process
- CPU Cores: TSMC 4nm FinFET
- I/O Die: TSMC 6nm FinFET
Socket
AM5
AM5
Supported Chipsets
A620, B650, B650E, X670, X670E, B840, B850, X870, X870E
A620, B650, B650E, X670, X670E, B840, B850, X870, X870E
Memory Support
- Type: DDR5 UDIMM
- Channels: Dual-channel
- Max Capacity: 256 GB
- Max Speed:
- 2×1R/2R: DDR5-5600
- 4×1R/2R: DDR5-3600
- ECC Support: Yes (requires motherboard support)
- AMD EXPO™: Yes
PCIe & Connectivity
- PCIe Version: PCIe 5.0
- Total Lanes: 28 (24 usable + 4 for chipset)
- Native USB:
- USB 3.2 Gen 2 (10 Gbps): 4 ports
- USB 2.0 (480 Mbps): 1 port
- NVMe Support: Boot, RAID 0/1/5/10
Integrated Graphics
- Model: AMD Radeon™ Graphics
- Cores: 2
- Frequency: 2200 MHz
- Features: USB Type-C® DisplayPort™ Alt Mode
Overclocking & Tuning
- Unlocked: Yes
- Precision Boost 2 & PBO: Yes
- Curve Optimizer: Yes
- Ryzen Master Support: Yes
Thermal
- Max Operating Temp (Tjmax): 95°C
- Thermal Solution (PIB): Not included
- Recommended Cooler: Liquid cooler
Security Features
- AMD Secure Processor
- Platform Secure Boot
- UEFI & Windows Secure Boot
- Firmware TPM
- Virtualization-Based Security (VBS)
- AMD-V, AVIC, AMD-Vi
- AES-NI, SMEP, Shadow Stack
- Windows Secured-Core PC Support
OS Support
- Windows 11 / 10 (64-bit)
- RHEL x86 64-bit
- Ubuntu x86 64-bit
AMD PRO Technologies
No
No
