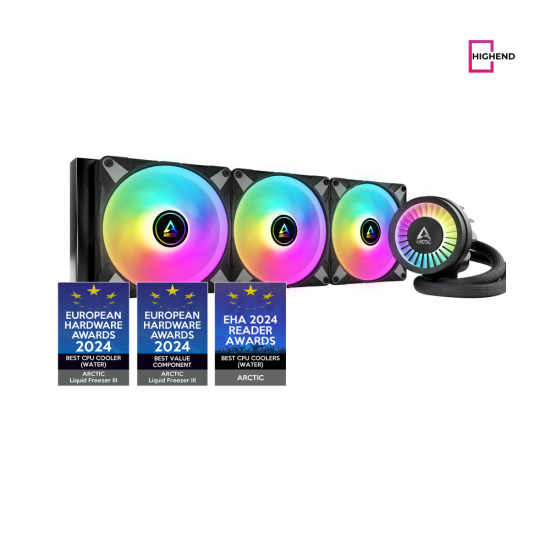

ARCTIC Liquid Freezer III 420 A-RGB
- Stock: In Stock
- Brand: ARCTIC
- Model: ACFRE00145A
Products Sold: 0
Product Views: 5236
7,250.00 EGP
Ex Tax: 7,250.00 EGP
Tags:
ARCTIC
, ACFRE00145A
, Fan and Cooling System
, 0.8 g
, 6 (0.8 g)
, 40 °C
, Pin A-RGB Connector
, In-One Connector
, 2325 g
, AM5
, AM4
, 2800 rpm (PWM controlled)
, 450 mm
, 12.4 mm
, 6.0 mm
, 2500 rpm (PWM controlled)
, 1900 rpm
, Fluid Dynamic Bearing
, 40 mm
, 80 mm
, Pin A-RGB Connector + 3-Pin Plug
| Specification | Details / Value |
| Warranty | 6 Years |
| TIM | MX-6 (0.8 g) |
| Operating Ambient Temperature | 0—40 °C |
| PI / NNPI | 420 | 376 |
| LED Connector | 3-Pin A-RGB Connector |
| All-In-One Connector | 4-Pin PWM Connector |
| Split Connector | 3x 4-Pin PWM Connector |
| Weight | 2325 g |
| Compatibility | Intel: 1851, 1700 AMD: AM5, AM4 |
Pump Specifications
| Feature | Details / Value |
| Pump Speed | 800—2800 rpm (PWM controlled) |
| Current | Voltage | 0.35 A | 12 V DC |
| Cold Plate | Copper, Micro Skived Fins |
| Tube Length | 450 mm |
| Tube Diameter | Outer: 12.4 mm | Inner: 6.0 mm |
Radiator Specifications
| Feature | Details / Value |
| Material | Aluminium |
| Dimensions | 458 (L) x 138 (W) x 38 (H) mm |
VRM Module Specifications
| Feature | Details / Value |
| VRM Fan | 400—2500 rpm (PWM controlled) |
| VRM Fan Current | Voltage | 0.05 A | 12 V DC |
| VRM LEDs | 12x A-RGB LEDs |
| LEDs Current | Voltage | 0.40 A | 5 V DC |
Fan Specifications
| Feature | Details / Value |
| General | 3x P14 PWM PST A-RGB |
| Speed | 200—1900 rpm |
| Air Flow | 69.90 cfm | 117.06 m3/h |
| Static Pressure | 2.0 mmH2O |
| Bearing | Fluid Dynamic Bearing |
| Current | Voltage | 0.17 A | 12 V DC |
| Cable Length | 40 mm |
| Connector | 4-Pin PWM Connector |
RGB Specifications
| Feature | Details / Value |
| LEDs | 12x A-RGB LEDs |
| Current | Voltage | 0.40 V | 5 V DC |
| Cable Length | 40 mm + 80 mm Splitter Cable |
| Connector | 3-Pin A-RGB Connector + 3-Pin Plug |
