New

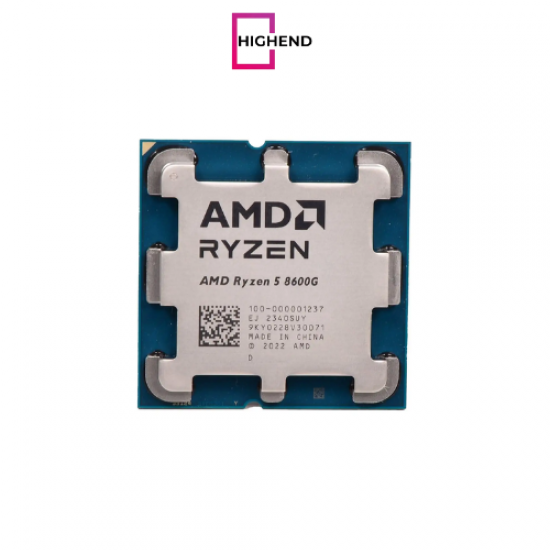

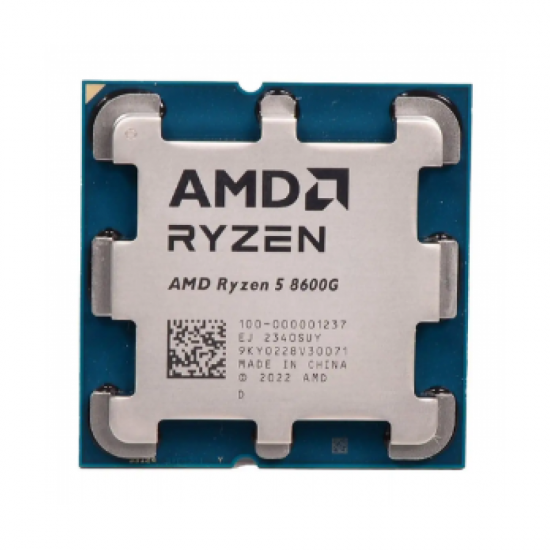

AMD Ryzen 5 8600G tray desktop processor with Zen 4 architecture, Radeon 760M graphics and 65W TDP
- Stock: In Stock
- Brand: AMD
- Model: 100-000001237
Products Sold: 0
Product Views: 14
9,000.00 EGP
Ex Tax: 9,000.00 EGP
Model Name
AMD Ryzen™ 5 8600G Tray Desktop Processor
AMD Ryzen™ 5 8600G Tray Desktop Processor
Architecture & Cores
- Architecture: Zen 4 (Phoenix)
- Cores / Threads: 6 Cores / 12 Threads (SMT enabled)
- Package Die Count: 1 (4nm CCD)
- Lithography: TSMC 4nm FinFET (CPU Cores)
- Die Size: 178 mm² (CCD)
Clock Speeds & Cache
- Base Clock: 4.3 GHz
- Max Boost Clock: Up to 5.0 GHz
- L2 Cache: 6 MB
- L3 Cache: 16 MB
Power & Thermal
- Default TDP: 65 W
- Configurable TDP (cTDP): 45–65 W
- Max Operating Temperature: 95°C
Memory & Expansion
- Memory Type: DDR5 UDIMM (2-Channel)
- Max Capacity: 256 GB
- Max Speed: Up to DDR5-5200
- PCIe Revision: PCIe 4.0
- PCIe Lanes: 20 Total / 16 Usable
- Storage: NVMe Support (Boot, RAID 0/1)
- USB: 2 × Native USB 4 (40 Gbps) | 2 × Native USB 3.2 Gen 2 (10 Gbps) | 1 × Native USB 2.0
Integrated Graphics (iGPU)
- GPU Model: AMD Radeon™ 760M
- Compute Units: 8
- GPU Frequency: 2800 MHz
- Graphics Standards: DirectX 12, OpenGL (Version Not Listed), OpenCL (Version Not Listed)
- Display Outputs:
- DisplayPort 2.1: Up to 4 displays (e.g., 4K @ 600Hz, 8K @ 60Hz SDR/HDR)
- HDMI 2.1: Up to 4 displays (specs aligned with DP)
- Features: AMD FreeSync™, HDCP 2.3, USB-C DP Alt Mode, Multi-Monitor Support, Adaptive-Sync, HDR Metadata
- Wireless Display: Miracast
Media Engine
- Encode: H.264, H.265 (HEVC), AV1 (High Bandwidth)
- Decode: MPEG2, VC1, VP9, H.264, H.265 (HEVC), AV1
Platform & Compatibility
- Socket: AM5
- Supporting Chipsets: X870E, X870, B850, B840, X670E, X670, B650E, B650, A620
- Overclocking: Unlocked (Supports AMD EXPO™, Precision Boost Overdrive, Curve Optimizer, Ryzen Master)
- Boost Technology: Precision Boost 2
- AI Engine: AMD Ryzen™ AI (Up to 16 TOPS)
- Smart Access Memory: Available
- Launch Date: Q1 2024
- OS Support: Windows 11/10 (64-bit), RHEL x86 64-bit, Ubuntu x86 64-bit
Security & Advanced Features
- Instruction Set: x86-64 with AES, AVX512, AVX2, FMA3, SHA, SSE4.2, SSE4.1, AMD-V
- Hardware Security: NX Bit (Enhanced Virus Protection)
Product IDs
- Tray: 100-000001237
