- Stock: In Stock
- Brand: AMD
- Model: 100-100000718BOX
| Specification | Details / Value |

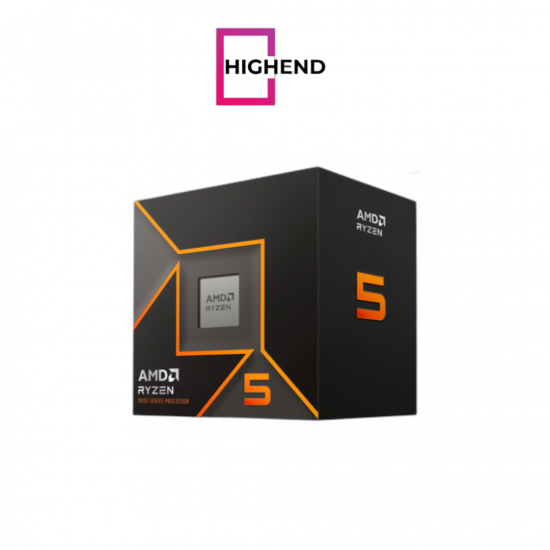

| Model Name | AMD Ryzen™ 5 9600 |
| Architecture & Cores | Architecture: Zen 5 (Granite Ridge) Cores / Threads: 6 Cores / 12 Threads (SMT enabled) Package Die Count: 2 (4nm CPU / 6nm I/O) Lithography: TSMC 4nm FinFET (CPU Cores) / TSMC 6nm FinFET (I/O Die) |
| Clock Speeds & Cache | Base Clock: 3.8 GHz Max Boost Clock: Up to 5.2 GHz L1 Cache: 480 KB L2 Cache: 6 MB L3 Cache: 32 MB |
| Power & Thermal | Default TDP: 65 W Max Operating Temperature: 95°C Included Cooler: AMD Wraith Stealth |
| Memory & Expansion | Memory Type: DDR5 UDIMM (2-Channel) Max Capacity: 256 GB Max Speed: DDR5-5600 (2×1R/2R) / DDR5-3600 (4×1R/2R) ECC Support: Yes (requires motherboard support) PCIe Revision: PCIe 5.0 PCIe Lanes: 28 Total / 24 Usable Storage: NVMe Support (Boot, RAID 0/1/5/10) USB: 4 × Native USB 3.2 Gen 2 (10 Gbps) | 1 × Native USB 2.0 |
| Integrated Graphics | GPU: AMD Radeon™ Graphics Cores: 2 Frequency: 2200 MHz Features: USB-C® DisplayPort™ Alternate Mode Support |
| Platform & Compatibility | Socket: AM5 Supporting Chipsets: X870E, X870, B850, B840, X670E, X670, B650E, B650, A620 Overclocking: Unlocked (Supports AMD EXPO™, Precision Boost Overdrive, Curve Optimizer, Ryzen Master) Boost Technology: Precision Boost 2 Launch Date: February 19, 2025 OS Support: Windows 11/10 (64-bit), RHEL x86, Ubuntu x86 |
| Security & Advanced Features | Hardware Security: AES-NI, NX Bit, Shadow Stack, UEFI/Windows Secure Boot Virtualization: AMD-V (SVM), AVIC, AMD-Vi (I/O MMU), SLAT Instruction Set: x86-64 with AVX512, AVX2, FMA3, SHA, SSE extensions |
| Product IDs | Boxed: 100-100000718BOX |
