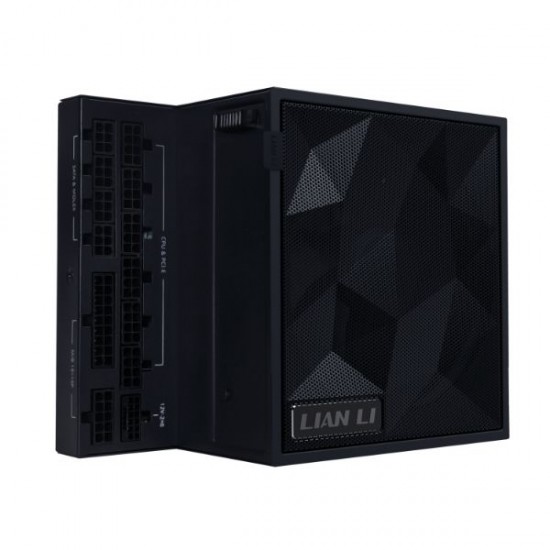

Lian Li Edge Serie - 1200W Full Modular Power Supply (Fan USB Hub Included) - Gold - ATX 3.1 - PCIE 5.1 Support - 12V-2x6 Connector - L-Shape Design for Dual Chamber Case
- Stock: In Stock
- Brand: Lian Li
- Model: EG1200G
Products Sold: 0
Product Views: 5882
8,200.00 EGP
Ex Tax: 8,200.00 EGP
Tags:
Lian Li
, EG1200G
, Power Supplies
, EDGE GOLD 750
, EDGE GOLD 850
, EDGE GOLD 1000
, EDGE GOLD 1200
, EG0750G
, EG0850G
, EG1000G
, 182 mm
, 86 mm
, 150 mm
, (D)182 mm X (W)86 mm X (H)150 mm
, Black/ White
, ATX
, ATX 3.1
, 750W
, 850W
, 1000W
, 1200W
, 120W
, 744W
, 849W
, 996W
, 100-240Vac
, 9-4.5A 50-60Hz
, 10-5A 50-60Hz
, 12-6A 50-60Hz
, 15-7.5A 50-60Hz
, 90.52%MAX
, 90.71%MAX
, 91.24%MAX
, 91.64%MAX
, OCP/OVP/OTP/OPP/SCP/UVP
, 620mm
, 750mm
, 650mm
, 100mm
, 300mm
, 15mm
, 375mm
, 150mm
, 400mm
, 500mm
, 450W
, 1 x 24/20-Pin motherboard connector (620mm) x1pcs
, 1 x 4+4 Pin CPU connector (750mm) x1pcs
, 1 x 6+2 Pin GPU connector (650mm+100mm) x1pcs
, 1 x SATA connector (300mm-15mm-15mm-15mm) x1pcs
, 1 x SATA-Y connector (375mm-150mm-150mm) x 1pcs
, 1 x SATA connector (400mm-150mm-150mm-150mm) x1pcs
, 2 x 6+2 Pin GPU connector (650mm) x2pcs
, 4 x SATA connector (300mm-15mm-15mm-15mm) x 1pcs
, 4 x Y Type SATA connector (375mm-150mm-150mm-150mm) x1pcs
, 4 x SATA connector (400mm-150mm-150mm-150mm) x 1pcs
, USB*9pin – USB*9pin connector (470mm) × 1pcs
, USB*9pin -Type A connector (550mm) × 1pcs
| PRODUCT NAME | EDGE GOLD 750 | EDGE GOLD 850 | EDGE GOLD 1000 | EDGE GOLD 1200 |
|---|---|---|---|---|
| MODEL | EG0750G | EG0850G | EG1000G | EG1200G |
| DIMENSIONS | (D)182 mm X (W)86 mm X (H)150 mm | |||
| POWER SUPPLY DESIGN | Fully modular | |||
| COLOR | Black | Black/ White | ||
| MATERIAL | Steel | |||
| FORM FACTOR | ATX 3.1 | |||
| CERTIFICATION | 80 PLUS GOLD / Cybenetics GOLD / PPLP GOLD | |||
| MAX. DC OUTPUT | 750W | 850W | 1000W | 1200W |
| COMBINED +3.3V & +5V | 120W | 120W | 120W | 120W |
| COMBINED +12V | 744W | 849W | 996W | 1200W |
| INPUT VOLTAGE | 100-240Vac | 100-240Vac | 100-240Vac | 100-240Vac |
| INPUT FREQUENCY RANGE | 9-4.5A 50-60Hz | 10-5A 50-60Hz | 12-6A 50-60Hz | 15-7.5A 50-60Hz |
| PFC | Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz | |||
| EFFICIENCY | 90.52%MAX | 90.71%MAX | 91.24%MAX | 91.64%MAX |
| PROTECTIVE CIRCUIT | OCP/OVP/OTP/OPP/SCP/UVP | |||
| CONNECTORS | 1 x 24/20-Pin motherboard connector (620mm) x1pcs 1 x 8 pin CPU/ATX 12V connector (750mm) x1pcs 1 x 4+4 Pin CPU connector (750mm) x1pcs 1 x 6+2 Pin GPU connector (650mm+100mm) x1pcs 1 x SATA connector (300mm-15mm-15mm-15mm) x1pcs 1 x SATA-Y connector (375mm-150mm-150mm) x 1pcs 1 x SATA connector (400mm-150mm-150mm-150mm) x1pcs 4 x 4-Pin Peripheral connector (500mm-150mm-150mm-150mm) x1pcs 1 x 12V – 2X6 450W connector (650mm) x1pcs 2 x 6+2 Pin GPU connector (650mm) x2pcs | 1 x 24/20-Pin motherboard connector (620mm) x1pcs 1 x 8 pin CPU/ATX 12V connector (750mm) x1pcs 1 x 4+4 Pin CPU connector (750mm) x1pcs 1 x 6+2 Pin GPU connector (650mm+100mm) x1pcs 1 x SATA connector (300mm-15mm-15mm-15mm) x1pcs 1 x SATA-Y connector (375mm-150mm-150mm) x 1pcs 1 x SATA connector (400mm-150mm-150mm-150mm) x1pcs 4 x 4-Pin Peripheral connector (500mm-150mm-150mm-150mm) x1pcs 1 x 12V – 2X6 450W connector (650mm) x1pcs 2 x 6+2 Pin GPU connector (650mm) x2pcs | 1 x 24/20-Pin motherboard connector (620mm) x1pcs 1 x 8/4+4 Pin CPU/ATX 12V connector (750mm) x1pcs 1 x 4+4 Pin CPU/ATX 12V connector (750mm) x1pcs 1 x 6+2 Pin PCle connector (650mm + 100mm) x1pcs 4 x SATA connector (300mm-15mm-15mm-15mm) x 1pcs 4 x Y Type SATA connector (375mm-150mm-150mm-150mm) x1pcs 4 x SATA connector (400mm-150mm-150mm-150mm) x 1pcs 4 x 4-Pin Peripheral connector (500mm-150mm-150mm- 150mm) x1pcs 1 x 12V – 2X6 600W connector (650mm) x1pcs USB*9pin – USB*9pin connector (470mm) × 1pcs USB*9pin -Type A connector (550mm) × 1pcs | 1 x 24/20-Pin motherboard connector (620mm) x1pcs 1 x 8/4+4 Pin CPU/ATX 12V connector (750mm) x1pcs 1 x 4+4 Pin CPU/ATX 12V connector (750mm) x1pcs 1 x 6+2 Pin PCle connector (650mm + 100mm) x1pcs 4 x SATA connector (300mm-15mm-15mm-15mm) x 1pcs 4 x Y Type SATA connector (375mm-150mm-150mm-150mm) x1pcs 4 x SATA connector (400mm-150mm-150mm-150mm) x 1pcs 4 x 4-Pin Peripheral connector (500mm-150mm-150mm- 150mm) x1pcs 1 x 12V – 2X6 600W connector (650mm) x1pcs 1 x 12V – 2X6 -2*8 600W connector (650mm) x1pcs USB*9pin – USB*9pin connector (470mm) × 1pcs USB*9pin -Type A connector (550mm) × 1pcs |
| FAN TYPE | 120mm FDB Fan | |||
| FAN SPEED | 2000RPM | 2400RPM | ||
