New

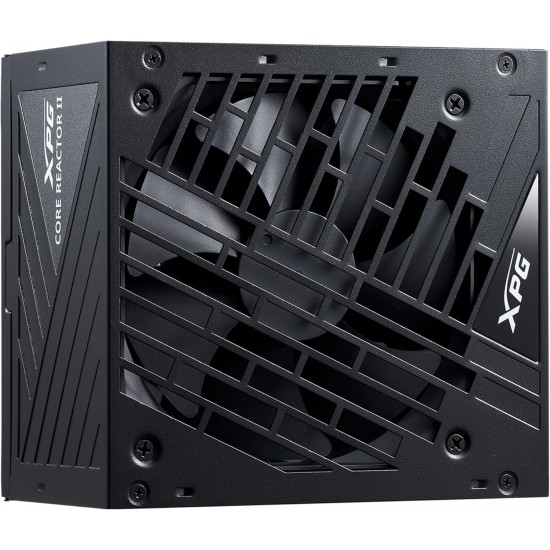

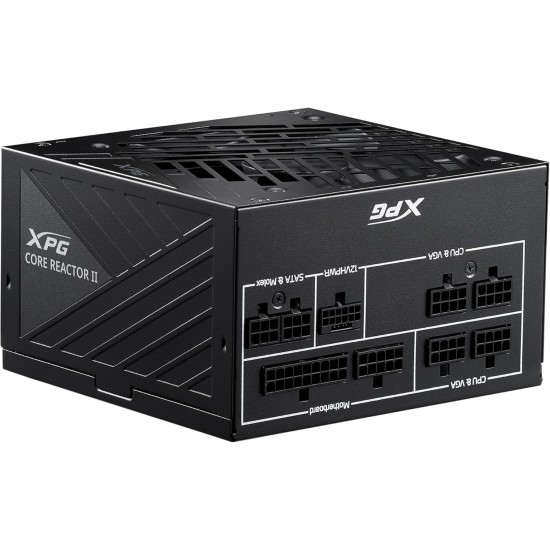

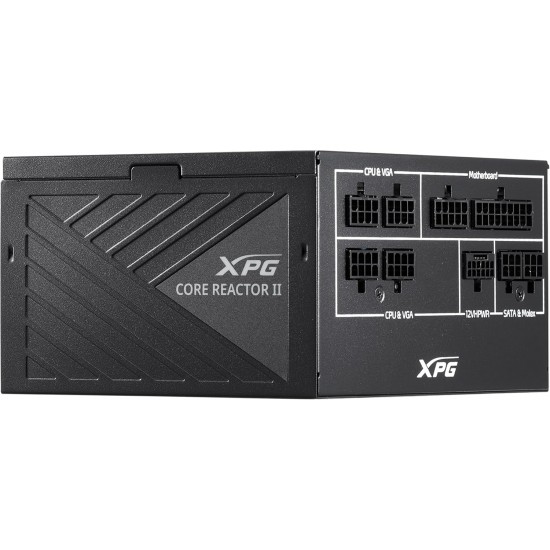

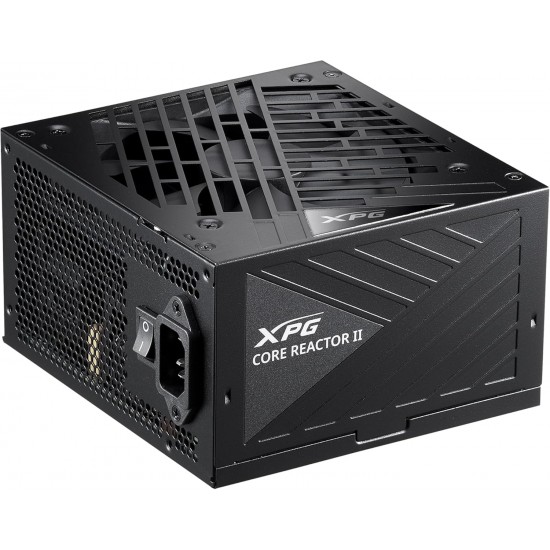

XPG Core Reactor II 1200W 80 Plus Gold Full Modular Power Supply
- Stock: In Stock
- Brand: XPG
- Model: COREREACTORII1200G-BKCUS
Products Sold: 0
Product Views: 66
9,350.00 EGP
Ex Tax: 9,350.00 EGP
Dimensions (L x W x H)
650W-850W: 140 x 150 x 86mm
1000W-1200W: 160 x 150 x 86mm
1000W-1200W: 160 x 150 x 86mm
Cybenetics Rating
1200W: PLATINUM
1000W: PLATINUM
850W: PLATINUM
750W: PLATINUM
650W: PLATINUM
1000W: PLATINUM
850W: PLATINUM
750W: PLATINUM
650W: PLATINUM
80 Plus Rating
GOLD
ATX Version
ATX 3.1
Protections
OCP | OVP | OPP | OTP | UVP | SCP | NLO | SIP
Certification
CE | CB| FCC(IC) | TUV | cTUVus | TUV S-Mark | NOM | BSMI | UKCA | EAC | CCC | RCM
PFC
> 0.99
Input Voltage
100-240V
Input Current
1200W: 15A
1000W: 13A
850W: 12A
750W: 10A
650W: 10A
1000W: 13A
850W: 12A
750W: 10A
650W: 10A
Input Frequency
650/750/850/1000/1200W:47Hz-63Hz
DC Output Voltage
+5V | +3.3V | +12V | -12V | +5Vsb
Total Output
1200W: +5V/+3.3V :22A, +12V:100A, -12V:0.3A, +5Vsb:3A
1000W: +5V/+3.3V :22A, +12V:83.5A, -12V:0.3A, +5Vsb:3A
850W: +5V/+3.3V :22A, +12V:70.8A, -12V:0.3A, +5Vsb:3A
750W: +5V/+3.3V :22A, +12V:62.5A, -12V:0.3A, +5Vsb:3A
650W: +5V/+3.3V :20A, +12V:54.1A, -12V:0.3A, +5Vsb:3A
1000W: +5V/+3.3V :22A, +12V:83.5A, -12V:0.3A, +5Vsb:3A
850W: +5V/+3.3V :22A, +12V:70.8A, -12V:0.3A, +5Vsb:3A
750W: +5V/+3.3V :22A, +12V:62.5A, -12V:0.3A, +5Vsb:3A
650W: +5V/+3.3V :20A, +12V:54.1A, -12V:0.3A, +5Vsb:3A
Power Excursion
1200W: 2820W(*up to 235% of the PSU's rated power for 100μs)
1000W: 2350W(*up to 235% of the PSU's rated power for 100μs)
850W: 1997W (*up to 235% of the PSU's rated power for 100μs)
750W: 1762W (*up to 235% of the PSU's rated power for 100μs)
650W: 1527W(*up to 235% of the PSU's rated power for 100μs)
1000W: 2350W(*up to 235% of the PSU's rated power for 100μs)
850W: 1997W (*up to 235% of the PSU's rated power for 100μs)
750W: 1762W (*up to 235% of the PSU's rated power for 100μs)
650W: 1527W(*up to 235% of the PSU's rated power for 100μs)
Operating Temperature
50°C
Fan Size
650W-850W: 120mm FDB Fan
1000W-1200W: 135mm FDB Fan
1000W-1200W: 135mm FDB Fan
Fan Bearing
FDB (Fluid Dynamic Bearing)
Fan Speed
2400 RPM
MTBF
100K hours at full load
ATX 24 Pin Connector
1200W/1000W:1
850W/750W/650W:1
850W/750W/650W:1
EPS 8 Pin Connector
1200W/1000W:2
850W/750W/650W:2
850W/750W/650W:2
PCI-E 6+2 Pin Connector
1200W/1000W:8
850W/750W:6
650W:4
850W/750W:6
650W:4
Molex 4 Pin Connector
1200W/1000W:3
850W/750W/650W:4
850W/750W/650W:4
12V-2x6 / 12VHPWR (12+4) Connector (600W)
1200W/1000W/850W/750W: 1
12V-2x6 / 12VHPWR (12+4) Connector (450W)
650W:1
SATA Connector
1200W/1000W:9
850W/750W/650W:8
850W/750W/650W:8
Weight
1200W/1000W:
Product+cables：1.77kg+1.28kg
with Package:3.43kg
850W/750W:
Product+cables：1596g+1254g
with Package:3.1kg
650W:
Product+cables：1299g+1231g
with Package:2.78kg
Product+cables：1.77kg+1.28kg
with Package:3.43kg
850W/750W:
Product+cables：1596g+1254g
with Package:3.1kg
650W:
Product+cables：1299g+1231g
with Package:2.78kg
Warranty
10 Years
