New

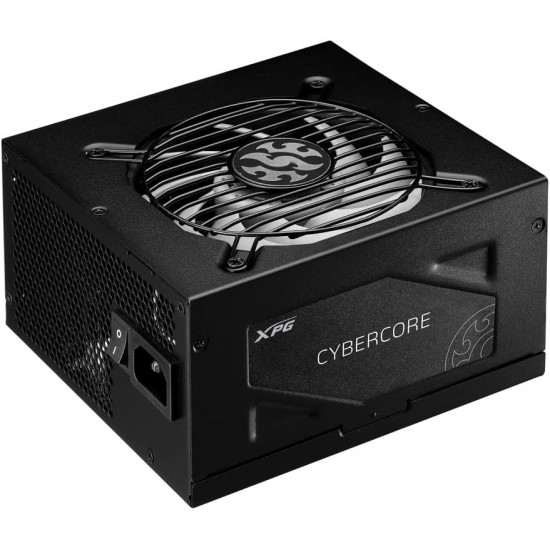

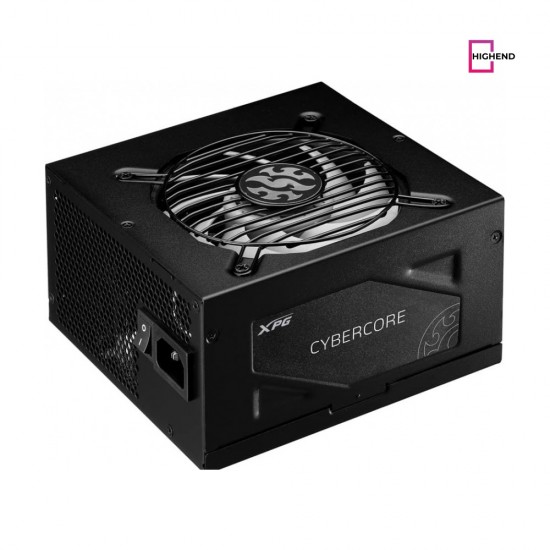

XPG Cybercore II 1300W 80 Plus Platinum Fully Modular Power Supply
- Stock: In Stock
- Brand: XPG
- Model: 842243028201
Products Sold: 0
Product Views: 33
11,000.00 EGP
Ex Tax: 11,000.00 EGP
Dimensions (L x W x H)
160 x 150 x 86mm
Cybenetics Rating
PLATINUM
80 Plus Rating
PLATINUM
ATX Version
ATX 3.1
Protections
OCP | OVP | OPP | OTP | UVP | SCP | NLO | SIP
Certification
CE | CB| FCC(IC) | TUV | cTUVus | TUV S-Mark | NOM | BSMI | UKCA | EAC | CCC | RCM
PFC
> 0.99
Input Voltage
100-240V
Input Current
(1)1300W：15A
(2)1000W：13A
(2)1000W：13A
Input Frequency
(1)1300W：50-60Hz
(2)1000W：50-60Hz
(2)1000W：50-60Hz
DC Output Voltage
+5V | +3.3V | +12V | -12V | +5Vsb
Total Output
(1) 1300W
(2) 1000W
(2) 1000W
Power Excursion
1000W: 2000W (*up to 235% of the PSU's rated power for 100μs)
1300W: 2600W (*up to 235% of the PSU's rated power for 100μs)
1300W: 2600W (*up to 235% of the PSU's rated power for 100μs)
Operating Temperature
50°C
Fan Size
120mm
Fan Bearing
Double Ball Bearing
Fan Speed
2,150 RPM
MTBF
125,000 hours @ 25°C
ATX 24 Pin Connector
1300W：1
1000W：1
1000W：1
EPS 8 Pin Connector
1300W：2
1000W：2
1000W：2
PCI-E 6+2 Pin Connector
1300W：10
1000W：6
1000W：6
Molex 4 Pin Connector
1300W：8
1000W：4
1000W：4
12V-2x6 / 12VHPWR (12+4) Connector (600W)
1
SATA Connector
1300W：12
1000W：8
1000W：8
Weight
1000W：
Product+cables：1.96kg+1.35kg (4.32lb+3.0lb) ±5%
with Package：4.13kg (9.1lb) ±5%
1300W：
Product+cables：2kg+1.94kg (4.4lb+4.2lb) ±5%
with Package：4.6kg (10.1lb) ±5%
Product+cables：1.96kg+1.35kg (4.32lb+3.0lb) ±5%
with Package：4.13kg (9.1lb) ±5%
1300W：
Product+cables：2kg+1.94kg (4.4lb+4.2lb) ±5%
with Package：4.6kg (10.1lb) ±5%
Warranty
10 Years
Floppy 4 Pin Connector
1300W：2
1000W：1
1000W：1
