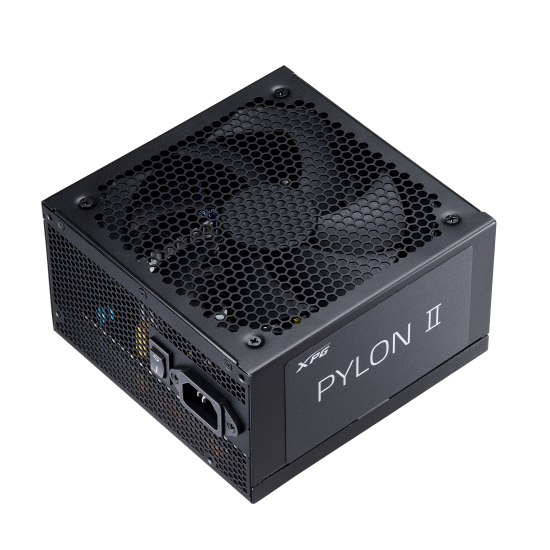

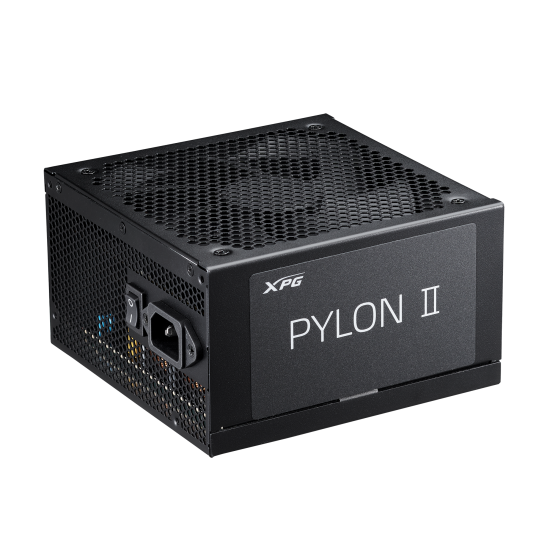

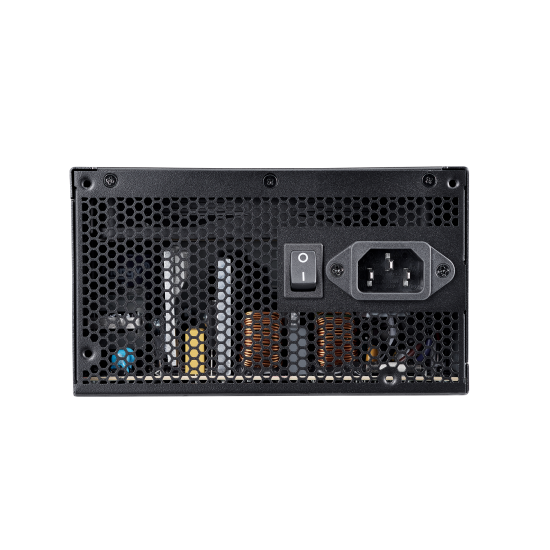

XPG Pylon II 650W 80 Plus Bronze Atx 3.1 Power Supply
- Stock: In Stock
- Brand: XPG
- Model: PYLONII650BRONZE
Products Sold: 0
Product Views: 19
3,250.00 EGP
Ex Tax: 3,250.00 EGP
Dimensions (L x W x H)
150 x 150 x 86mm
80 Plus Rating
BRONZE
ATX Version
Intel ATX v3.1
Protections
OVP / OPP / SCP / OCP / UVP / OTP / NLO / SIP
PFC
0.99
Input Voltage
100-240V
Input Current
750W / 650W: 10A
550W: 8A
550W: 8A
Input Frequency
50-60Hz
DC Output Voltage
+5V | +3.3V | +12V | -12V | +5Vsb
Total Output
750W: +5V/+3.3V :22A, +12V:62.5A, -12V:0.3A, +5Vsb:3A
650W: +5V/+3.3V :20A, +12V:54A, -12V:0.3A, +5Vsb:3A
550W: +5V/+3.3V :20A, +12V:45.5A, -12V:0.3A, +5Vsb:3A
650W: +5V/+3.3V :20A, +12V:54A, -12V:0.3A, +5Vsb:3A
550W: +5V/+3.3V :20A, +12V:45.5A, -12V:0.3A, +5Vsb:3A
Power Excursion
750W: 1762W (*up to 235% of PSU’s rated of power for 100µs)
650W: 1527W (*up to 235% of PSU’s rated of power for 100µs)
550W: 1292W (*up to 235% of PSU’s rated of power for 100µs)
650W: 1527W (*up to 235% of PSU’s rated of power for 100µs)
550W: 1292W (*up to 235% of PSU’s rated of power for 100µs)
Operating Temperature
50°C

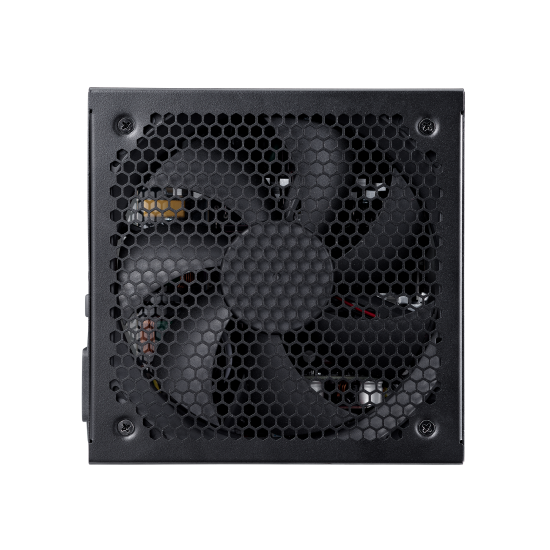

Fan Size
135mm
Fan Bearing
FDB (Fluid Dynamic Bearing)
Fan Speed
2300±10 RPM
MTBF
100K Hours at 25℃
ATX 24 Pin Connector
1
EPS 8 Pin Connector
2
Molex 4 Pin Connector
2
12V-2x6 (12+4) Connector (450W)
750W / 650W: 1
12V-2x6 Connector (300W)
550W: 1
SATA Connector
6
Weight
1.8 kg
Warranty
5 Years
